NEX0.9 - Working load: 900 Kg - Max sail area: 35 m²Part #NEX0.9
NEX0.9 - Working load: 900 Kg - Max sail area: 35 m²
Part #NEX0.9
Download PDF Print
Description

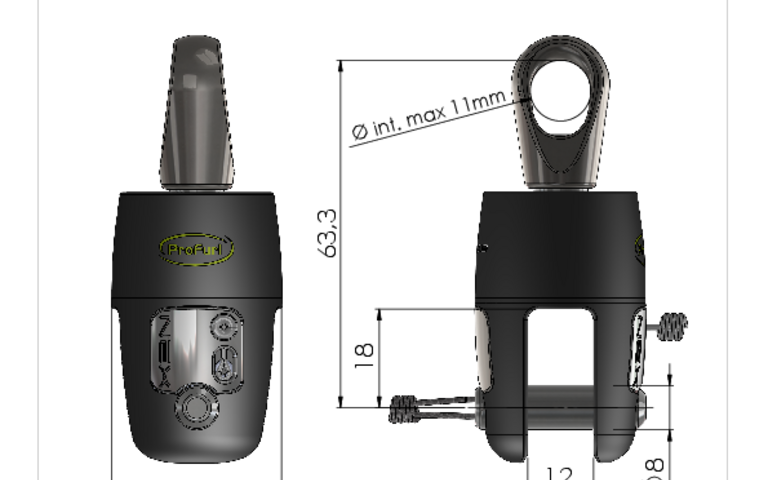

The NEX flying sail furler is available with many innovations and technological improvements. These innovations, resulting from our expertise gained since the launch of the first version of the NEX in 2010 will bring you even more performance, safety and comfort when sailing. Its range of 7 models covers all sizes of sails (up to 350m²) and enables it to equip boats of more than 80'.
Technical description
Why choose a NEX furler?
• Performance: Speed of furling, weight and optimized footprint
• Comfort and safety during furling/unfurling operations
• Rtachet feature for a better control of furling avoiding accidental unfurling of the sail. Operates in both direction and without additional lines
• Ease of use: easy installation, fast and intuitive sail trimming
• Reliable, proven and maintenance-free technology
• Wide range of end fittings for better adaptation to your deck layout
• Product with modern design
• 3-year international warranty
Components
This product includes one spool, one swivel, one snap shackle, one eye
Technical information
Sailing program
Cruising, racing, offshore racing
Light sail area
(m²)
35
Structural system
No
Partial furling of the sail
No
Ratchet
Yes
Working load
900
Spool diameter
(mm)
120
Pin diameter
(mm)
8
Furling line diameter
(mm)
8
Upper terminal
Eye
Lower terminal
Clevis pin snap shackle
Warranty
3 years
Options available
Eye, MXEVO halyard shackle, snap shackle with fairlead feature
